Useful Tools for Evaluating VMware Alternatives: A Breadth-Depth Framework and 56-Question Checklist

VMware replacement cannot be simply treated as a Hypervisor swap. VMware Cloud Foundation (VCF) is an integrated stack that most enterprises have gradually built dependency on over 10–15 years. Replacing one layer while leaving the rest either missing or sourced from disparate vendors recreates the fragmentation problem that VMware originally solved.

The white paper Beyond the Hypervisor Swap: Why VMware Replacement Demands Both Platform Breadth and Depth provides two toolkits — a Breadth-Depth evaluation framework and 56-question checklist — to help IT architects assess VMware alternatives during RFP and POC processes.

Download the white paper to gain the toolkits and explore the VMware alternative matrix assessed with the framework.

The Two-Axis Evaluation Framework

A rigorous VMware alternative evaluation must score every candidate platform on two independent axes. A strong score on one axis without the other is not sufficient for enterprise production.

Axis 1: Platform Breadth

Breadth asks: does this platform cover every functional layer that the VMware stack covers? Eight capability areas — spanning thirty-two testable criteria — constitute the minimum breadth checklist for a true VMware replacement:

• Compute Virtualization

Hypervisor + VM lifecycle management; live migration; VM placement control (affinity/anti-affinity groups); CPU/NUMA/SR-IOV/PCI passthrough support; VM encryption, secure boot, and TPM.

• Software-Defined Storage

Distributed block storage with RF2/RF3 replication and erasure coding; data localization (local replica on the VM host); no single-disk or single-controller bottleneck; storage data services (encryption, snapshots, clones) included natively.

• Integrated Kubernetes

Production-grade container orchestration native to the platform (not a separately deployed or cloud-delivered add-on); platform and K8s lifecycle managed together; GPU-schedulable; VM and container workload colocation on shared infrastructure; integrated stack with CSI, CNI and observability; DR for K8s cluster.

• Disaster Recovery (DR)

Aligns with the defined RPO/RTO for your applications and covers the full data protection spectrum: agentless and VM-consistent backup; async/sync replication to a secondary site with DR drill capability or cross-site active-active with automatic failover and zero data loss; automated failback, boot ordering, dependency mapping, and DR runbook orchestration.

• Software-Defined Networking (SDN)

Covers the full network and security stack: virtual switching, VLAN, and VxLAN routing; distributed firewall with workload-identity-based micro-segmentation; integrated load balancing for VM and container workloads; VPC-level tenant network isolation; all on-premises native, not cloud-delivered.

• Operation and Management (O&M)

A full-featured enterprise infrastructure management platform must deliver VM and cluster lifecycle management, performance monitoring and capacity planning, compliance enforcement, non-disruptive rolling upgrades across the full stack — including firmware, hypervisor, storage, networking, and Kubernetes — and unified observability across all layers from a single operational interface.

Two adjacent VMware capabilities are frequently raised but should not drive platform selection. Self-service automation (Aria/vRealize Automation) is a workflow layer above infrastructure management, not part of it. Native REST APIs and IaC tooling (Terraform, etc.) available on the evaluated platform provide a more portable foundation; Aria parity is an automation strategy decision, not a platform criterion. Multi-tenant virtual data center use cases (vCloud Director) are specific to service providers or enterprises running formal chargeback models. For most enterprise workloads, VPC-level network isolation in the SDN layer addresses the actual requirement — organizations should confirm whether the use case is genuine multi-tenancy or conventional workload isolation before treating vCD replacement as a hard requirement.

• Migration

Native, agentless V2V migration from VMware without requiring a third-party tool; source VMs remain online throughout the full data copy phase with incremental CBT delta sync before cutover; automatic paravirtual driver injection at the destination; automated network configuration mapping; source VM remains intact and recoverable until the operator confirms cutover success; orchestrated wave migration with sequencing and dependency controls.

For large-scale VM deployment, you also need to evaluate migration performance and reporting capability for the migration tool:

Performance: scalable concurrent transfer engine with automatic load-based worker scheduling for large-scale migration throughput;

Reporting: real-time per-VM progress tracking with execution records exportable as CSV or PDF.

• Ecosystem & Integration

Breadth and maturity of the surrounding partner ecosystem across four sub-layers — backup/recovery ISVs, disaster recovery (native + third-party), certified hardware partners, and enterprise application/ISV certifications.

Axis 2: Platform Depth

Depth asks: for each capability the platform claims to cover, does it actually meet enterprise-grade requirements? Six dimensions define depth:

• High Availability & Resilience

Enterprise-grade HA is not binary — it is a spectrum. Enterprise infrastructure platforms must provide comprehensive HA, DRS, workload placement policies, non-disruptive rolling upgrades, and storage-layer redundancy that maintains full replica protection during disk rebuild — not just after recovery completes.

• Performance

Storage performance is determined by architecture, not hardware alone. Key evaluation dimensions: data locality, I/O path efficiency, storage parallelism, RDMA networking, data auto-tiering and hardware offload. Benchmark at high utilization (>80%), during concurrent rebuild activity, and across deep snapshot chains — not on an idle cluster.

• Scalability

Platforms must support scale-up and scale-out without performance degradation, license-gated ceilings, or cluster size limits that fall below production requirements.

• Security

Platform security spans six pillars — each should ship in the base license, not as add-ons: secure access, zero-trust networking, data protection, platform hardening, continuous compliance, and operational governance.

• AI-Ready

AI-ready infrastructure requires RDMA-optimized storage-to-GPU data paths, native VM/container colocation, vGPU/MIG GPU pooling with HA coverage, and on-premises AI model lifecycle support — not a separate cluster or cloud dependency.

• Hardware Flexibility

Hardware lock-in compounds at every refresh cycle. Broad multi-vendor, multi-generation HCL support — converts flexibility into a direct procurement advantage.

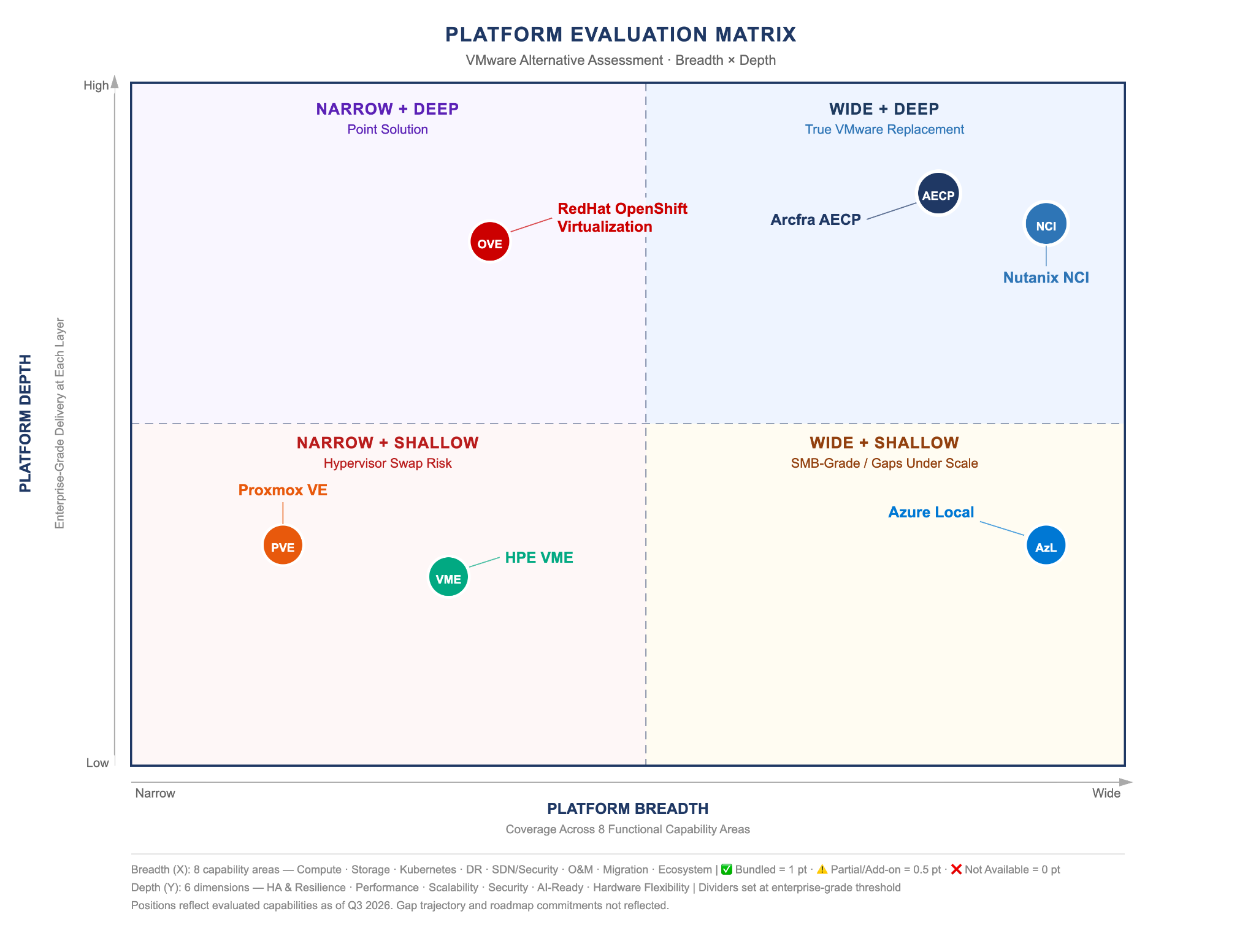

How to Use the Framework: The 2×2 Positioning Map

Plotting breadth against depth produces four categories based on vendor capabilities evaluation:

• Narrow + Shallow (hypervisor swap): fails 8+ breadth capabilities immediately. Fast to deploy, expensive to complete. Examples: bare Proxmox, HPE VM Essentials.
• Narrow + Deep (point solution): excellent in one or two layers; requires 3+ additional vendors to cover the rest. Creates re-fragmentation. Examples: Red Hat OpenShift Virtualization.
• Wide + Shallow (feature-complete but SMB-grade): passes the breadth checklist on paper; collapses under Tier-1 enterprise workloads at scale. Gaps surface 12–18 months post-migration. Examples: Azure Local.
• Wide + Deep (true VMware replacement): covers all 8 capability areas natively and meets enterprise-grade depth criteria at each layer. The only quadrant that eliminates re-fragmentation risk over a 5-year horizon. Examples: Nutanix NCI and Arcfra AECP.

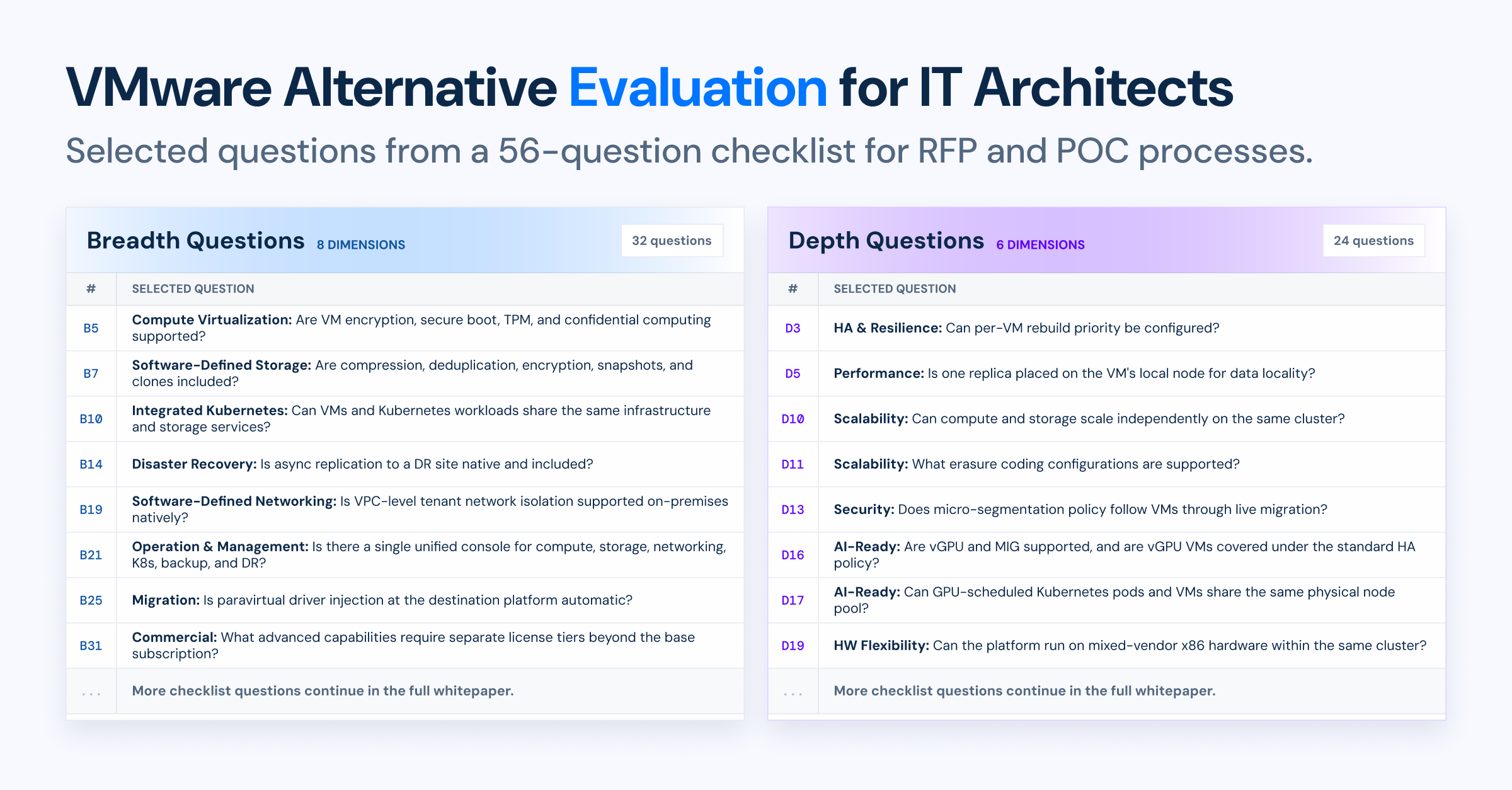

Platform Evaluation Checklist for IT Architects

Based on the two-axis evaluation framework, we provide a 56-question checklist to guide your RFP and POC processes. Each question has a clear pass criterion that differentiates enterprise-grade from SMB-grade implementations. Require written, verifiable responses — not verbal commitments.

Sample Breadth Questions

Sample Depth Questions (6 Dimensions)

Download the Whitepaper for VMware Alternative Evaluation

For a complete Breadth-Depth (2x2) evaluation framework, six top vendor comparisons, and the 56-question evaluation checklist, download the white paper: Beyond the Hypervisor Swap: Why VMware Replacement Demands Both Platform Breadth and Depth.
