Whitepaper | Beyond the Hypervisor Swap: Why VMware Replacement Demands Both Platform Breadth and Depth

Following Broadcom’s acquisition of VMware in 2023, changes to VMware’s licensing model, including the end of perpetual licensing and higher subscription costs, have accelerated enterprise demand for VMware alternatives.

However, VMware replacement is not just a hypervisor swap. VMware Cloud Foundation (VCF) has long served as an integrated platform spanning compute, storage, networking, Kubernetes, disaster recovery, and management. Replacing only one layer can recreate the fragmentation VMware helped reduce.

To help IT architects evaluate VMware alternatives more systematically, Arcfra has released the white paper Beyond the Hypervisor Swap: Why VMware Replacement Demands Both Platform Breadth and Depth. The white paper introduces a two-axis evaluation framework:

• Platform Breadth: Whether a platform covers the full range of capabilities required to replace the VMware stack.
• Platform Depth: Whether each capability meets enterprise requirements for reliability, performance, scalability, security, AI readiness, and hardware flexibility.

Based on this two-axis framework, VMware alternatives can be mapped into four categories, ranging from hypervisor swaps and point solutions to wide but shallow platforms and true enterprise-grade VMware replacements.

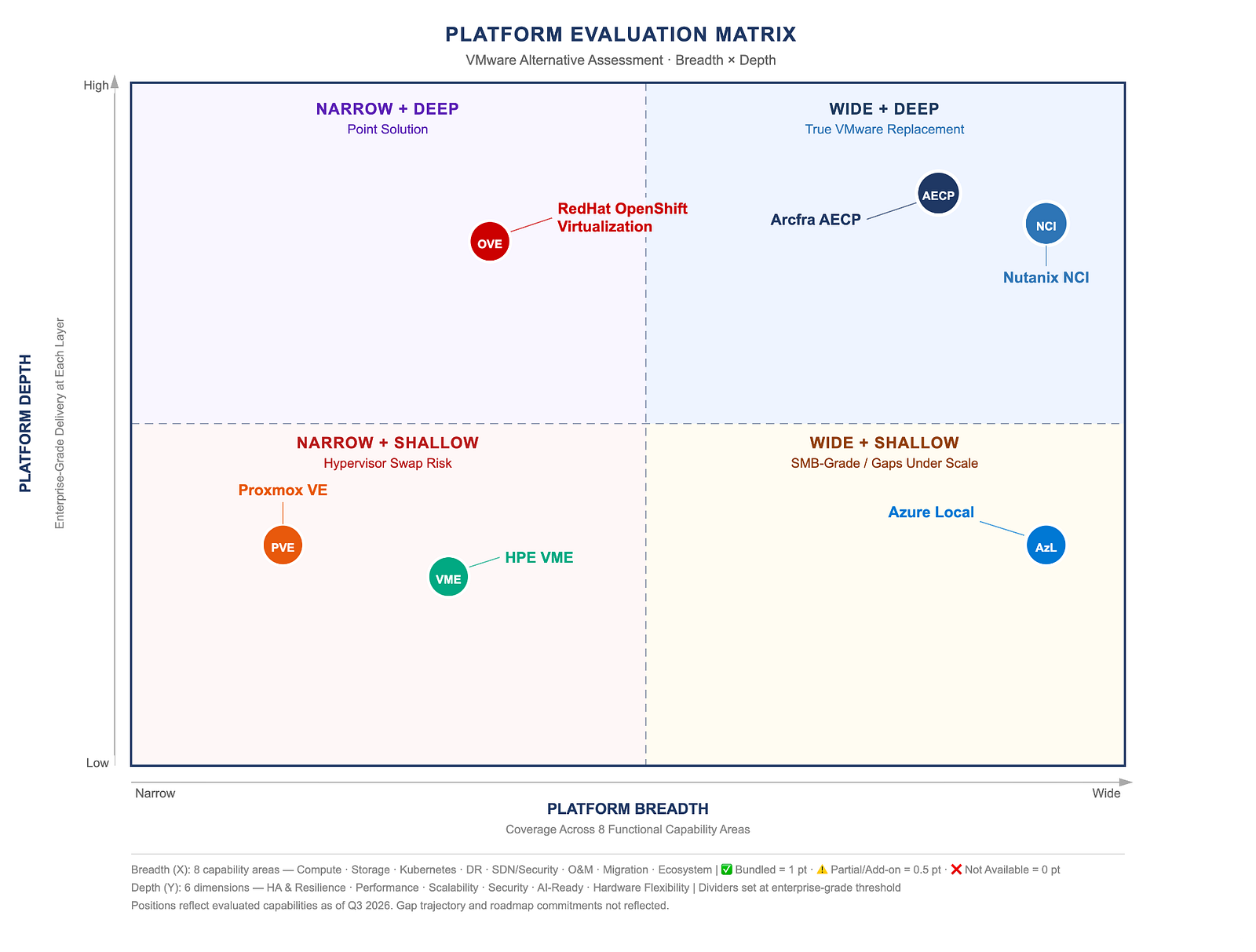

The 2×2 Platform Positioning Map

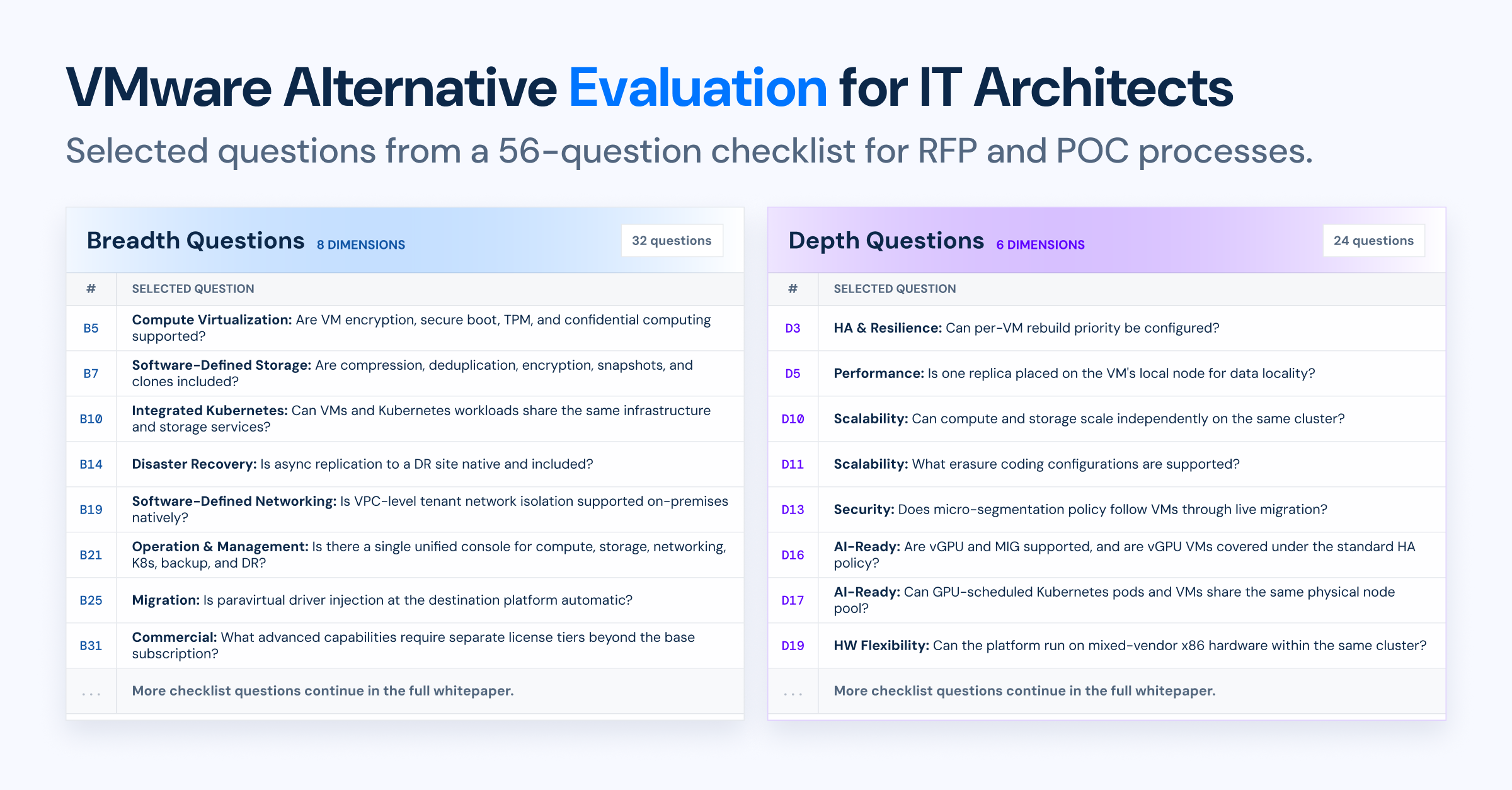

The white paper also provides a 56-question evaluation checklist to help IT architects assess VMware alternatives during RFP and POC processes.

Download the white paper to explore the complete evaluation framework and assessment criteria.

The Two-Axis Evaluation Framework

Evaluating VMware alternatives requires looking beyond whether a platform can run virtual machines. Enterprises need to assess both the scope of capabilities a platform covers and whether those capabilities can support production workloads at scale.

The white paper evaluates VMware alternatives across two dimensions: Platform Breadth and Platform Depth.

Axis 1: Platform Breadth

Breadth asks: does this platform cover every functional layer that the VMware stack covers? Eight capability areas — spanning thirty-two testable criteria — constitute the minimum breadth checklist for a true VMware replacement:

• Compute Virtualization

Hypervisor + VM lifecycle management; live migration; VM placement control (affinity/anti-affinity groups); CPU/NUMA/SR-IOV/PCI passthrough support; VM encryption, secure boot, and TPM.

• Software-Defined Storage

Distributed block storage with RF2/RF3 replication and erasure coding; data localization (local replica on the VM host); no single-disk or single-controller bottleneck; storage data services (encryption, snapshots, clones) included natively.

• Integrated Kubernetes

Production-grade container orchestration native to the platform (not a separately deployed or cloud-delivered add-on); platform and K8s lifecycle managed together; GPU-schedulable; VM and container workload colocation on shared infrastructure; integrated stack with CSI, CNI and observability; DR for K8s cluster.

• Disaster Recovery (DR)

Aligns with the defined RPO/RTO for your applications and covers the full data protection spectrum: agentless and VM-consistent backup; async/sync replication to a secondary site with DR drill capability or cross-site active-active with automatic failover and zero data loss; automated failback, boot ordering, dependency mapping, and DR runbook orchestration.

• Software-Defined Networking (SDN)

Covers the full network and security stack: virtual switching, VLAN, and VxLAN routing; distributed firewall with workload-identity-based micro-segmentation; integrated load balancing for VM and container workloads; VPC-level tenant network isolation; all on-premises native, not cloud-delivered.

• Operation and Management (O&M)

A full-featured enterprise infrastructure management platform must deliver VM and cluster lifecycle management, performance monitoring and capacity planning, compliance enforcement, non-disruptive rolling upgrades across the full stack — including firmware, hypervisor, storage, networking, and Kubernetes — and unified observability across all layers from a single operational interface.

Two adjacent VMware capabilities are frequently raised but should not drive platform selection. Self-service automation (Aria/vRealize Automation) is a workflow layer above infrastructure management, not part of it. Native REST APIs and IaC tooling (Terraform, etc.) available on the evaluated platform provide a more portable foundation; Aria parity is an automation strategy decision, not a platform criterion. Multi-tenant virtual data center use cases (vCloud Director) are specific to service providers or enterprises running formal chargeback models. For most enterprise workloads, VPC-level network isolation in the SDN layer addresses the actual requirement — organizations should confirm whether the use case is genuine multi-tenancy or conventional workload isolation before treating vCD replacement as a hard requirement.

• Migration:

Native, agentless V2V migration from VMware without requiring a third-party tool; source VMs remain online throughout the full data copy phase with incremental CBT delta sync before cutover; automatic paravirtual driver injection at the destination; automated network configuration mapping; source VM remains intact and recoverable until the operator confirms cutover success; orchestrated wave migration with sequencing and dependency controls.

For large-scale VM deployment, you also need to evaluate migration performance and reporting capability for the migration tool:

Performance: scalable concurrent transfer engine with automatic load-based worker scheduling for large-scale migration throughput;

Reporting: real-time per-VM progress tracking with execution records exportable as CSV or PDF.

• Ecosystem & Integration

Breadth and maturity of the surrounding partner ecosystem across four sub-layers — backup/recovery ISVs, disaster recovery (native + third-party), certified hardware partners, and enterprise application/ISV certifications.

Axis 2: Platform Depth

Depth asks: for each capability the platform claims to cover, does it actually meet enterprise-grade requirements? Six dimensions define depth:

• High Availability & Resilience

Enterprise-grade HA is not binary — it is a spectrum. Enterprise infrastructure platforms must provide comprehensive HA, DRS, workload placement policies, non-disruptive rolling upgrades, and storage-layer redundancy that maintains full replica protection during disk rebuild — not just after recovery completes.

• Performance

Storage performance is determined by architecture, not hardware alone. Key evaluation dimensions: data locality, I/O path efficiency, storage parallelism, RDMA networking, data auto-tiering and hardware offload. Benchmark at high utilization (>80%), during concurrent rebuild activity, and across deep snapshot chains — not on an idle cluster.

• Scalability

Platforms must support scale-up and scale-out without performance degradation, license-gated ceilings, or cluster size limits that fall below production requirements.

• Security

Platform security spans six pillars — each should ship in the base license, not as add-ons: secure access, zero-trust networking, data protection, platform hardening, continuous compliance, and operational governance.

• AI-Ready

AI-ready infrastructure requires RDMA-optimized storage-to-GPU data paths, native VM/container colocation, vGPU/MIG GPU pooling with HA coverage, and on-premises AI model lifecycle support — not a separate cluster or cloud dependency.

• Hardware Flexibility

Hardware lock-in compounds at every refresh cycle. Broad multi-vendor, multi-generation HCL support — converts flexibility into a direct procurement advantage.

Alternative Platform Assessments: Breadth and Depth

To demonstrate how the framework can be applied, the white paper assesses six representative platforms against eight Axis 1 breadth capability areas and six Axis 2 depth dimensions.

The six platforms assessed are: Nutanix NCI, Microsoft Azure Local, Proxmox VE, HPE VM Essentials (VME), Red Hat OpenShift Virtualization, and Arcfra AECP — evaluated against eight Axis 1 breadth capability areas and six Axis 2 depth dimensions.

Legend: ✅ Bundled / Strong ⚠️ Partial / Add-on / Tier-gated ❌ Not Available

Axis 1 — Platform Breadth Scorecard

Does this platform cover each of the eight functional capability areas?

Axis 2 — Platform Depth Scorecard

At each layer, does the platform meet enterprise-grade requirements?

The comparison shows that VMware alternatives differ significantly in their ability to provide both broad capability coverage and enterprise-grade depth. Solutions with limited breadth may require additional vendors to fill capability gaps, while solutions with limited depth may encounter challenges as enterprise workloads scale.

Conclusion

VMware replacement is not simply about finding another hypervisor. Enterprises need to evaluate whether a VMware alternative can provide both:

• the breadth of capabilities required to replace an integrated infrastructure stack;
• the depth required to support enterprise workloads over the long term.

Arcfra’s white paper Beyond the Hypervisor Swap: Why VMware Replacement Demands Both Platform Breadth and Depth provides a structured evaluation framework, vendor comparison, and a 56-question checklist to help IT architects make more informed VMware alternative decisions.

Download the white paper to explore the complete evaluation framework, vendor comparison and assessment criteria.
